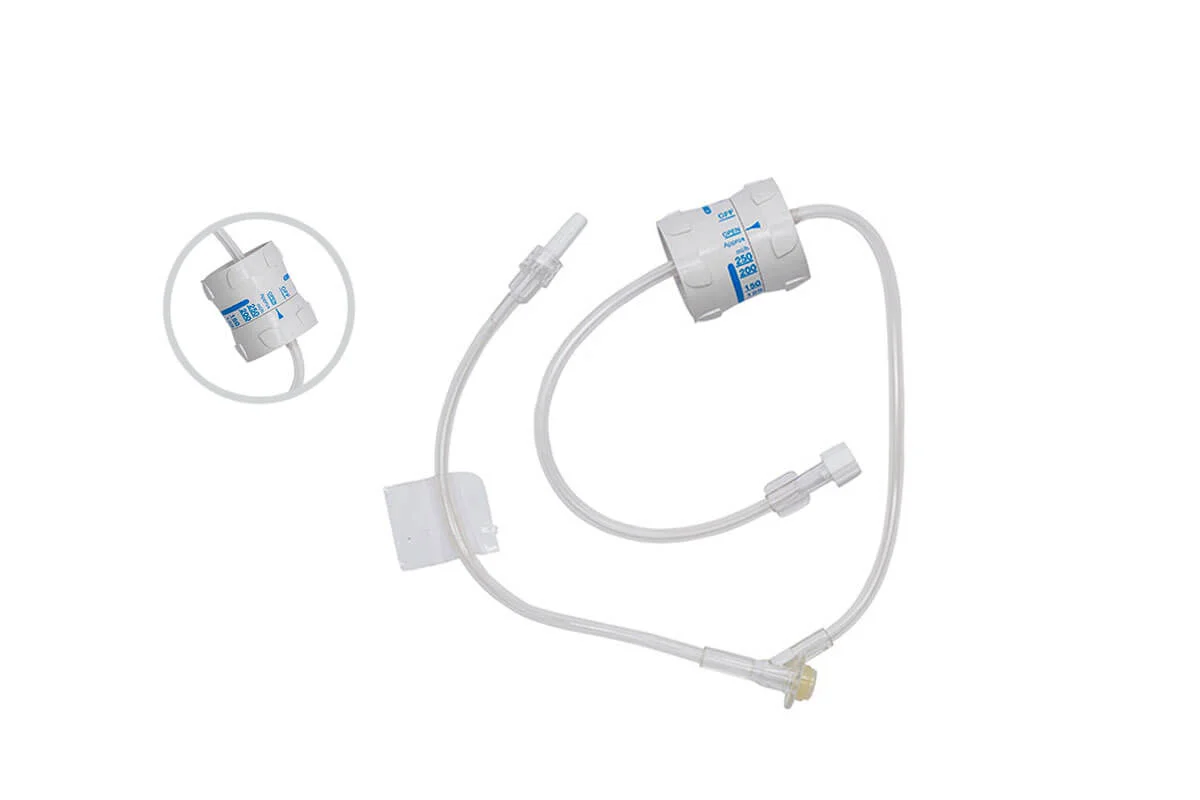

Dial Flow Regulator Extension Set

Designed to deliver accurate and controlled volumes of intravenous fluids and/or medications

Constructed with DEHP-free PVC tubing featuring an inner diameter of 3.0 mm and outer diameter of 4.1 mm

Supplied with a standard tube length of 45 cm; customized lengths available on request

Individually packed in a soft blister using MKP/Tyvek 2FS packaging

Equipped with male and female luer connectors compliant with ISO 80379-7 standards, along with a Y-injection port

DEHP-free tubing option available with custom tube length configurations

Offered with male luer slip, male luer lock, or rotating male luer lock connection options

Incorporates a collared long Y-site with a self-sealing, latex-free septum for safe and effective bolus IV injections

Features a specially engineered male luer with ribbed design for improved grip and secure patient-side connection, and a female luer with wings for easy handling and attachment to IV fluid sources

Ergonomically designed flow control dial with ridges for easy adjustment, allowing flow regulation from 20 to 250 ml/hr and dual calibration for 10% and 40% solution strengths

Option available with integrated drip chamber and flow regulator

Drip chamber manufactured from PVC/DEHP-free material, fitted with an in-built 15-micron disc filter for IV fluid particle filtration, or a 60 drops/ml micro-dropper for pediatric applications

Includes a specially designed vented spike with a 3-micron air vent to maintain pressure balance with the IV fluid container

Non-pyrogenic device, sterilized using Ethylene Oxide
